LINER-FENDER & QUARTER PANEL
REMOVAL

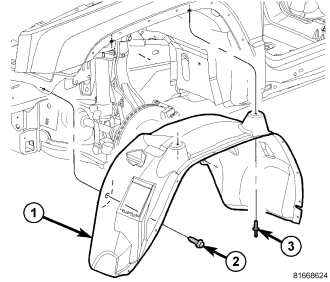

Front
1. If required remove wheel.
2. Remove the pushpins (2).
3. Remove the rivets (3).
4. Remove the eight rivets attaching the liner to the wheel flare molding (Refer to 23 - BODY/EXTERIOR/WHEEL OPENING FLARE MOLDINGS - REMOVAL).
5. Remove liner (1).

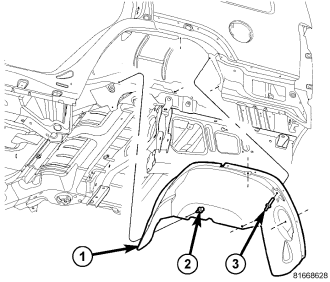

Rear
1. If required remove wheel.
2. Remove the pushpins (2).
3. Remove the rivets (3).
4. Remove the rivets attaching the liner to the wheel flare molding (Refer to 23 - BODY/EXTERIOR/WHEEL OPENING FLARE MOLDINGS - REMOVAL).
5. Remove liner (1).
INSTALLATION
Front
1. Install the liner (1).
2. Install the rivets attaching the flare molding to the wheel liner (Refer to 23 - BODY/EXTERIOR/WHEEL OPENING FLARE MOLDINGS - INSTALLATION).
3. Install the pushpins (2).
4. Install new rivets. rivets (3).
5. If required install the wheel.
Rear
1. Install the liner (1).
2. Install the rivets attaching the flare molding to the wheel liner (Refer to 23 - BODY/EXTERIOR/WHEEL OPENING FLARE MOLDINGS - INSTALLATION).
3. Install the pushpins (2).
4. Install new rivets. rivets (3).
5. If required install the wheel.
