CARPETS-FLOOR
REMOVAL
1. Remove the second row seats (Refer to 23 - BODY/SEATS/SEAT-SECOND ROW - REMOVAL).
2. Remove the third row seats (Refer to 23 - BODY/SEATS/SEAT-THIRD ROW - REMOVAL).
3. Remove the rear quarter trim panels (Refer to 23 - BODY/INTERIOR/PANEL-QUARTER TRIM - REMOVAL).
4. Remove the lower B-pillar trim (Refer to 23 - BODY/INTERIOR/PANEL-B-PILLAR LOWER TRIM - REMOVAL)
5. Remove the cowl trim panels (Refer to 23 - BODY/INTERIOR/PANEL-COWL SIDE TRIM - REMOVAL)
6. Remove the sill covers (Refer to 23 - BODY/INTERIOR/SILL COVER-INTERIOR - REMOVAL)
7. Remove the front seats (Refer to 23 - BODY/SEATS/SEAT-FRONT - REMOVAL).
8. Remove the floor console, (Refer to 23 - BODY/INTERIOR/CONSOLE-FLOOR - REMOVAL).
9. Remove the fasteners and position the modules aside.

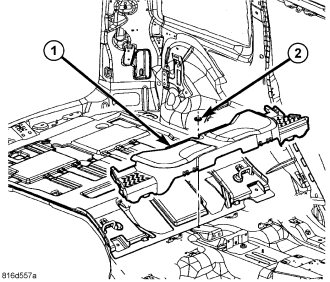

10. Remove the nut (2) and remove the module housing (1).

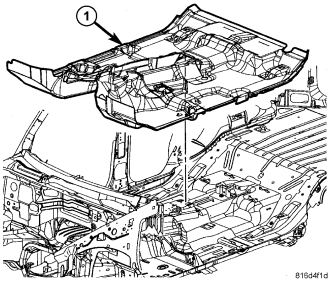

11. Remove the front carpet.
12. Remove the rear carpet.
INSTALLATION
1. Install the rear carpet.
2. Install the front carpet.
3. Install the module housing (1) and install the nut.
4. Position the modules back into the housing.
5. Install the floor console (Refer to 23 - BODY/INTERIOR/CONSOLE-FLOOR - INSTALLATION).
6. Install the front seats (Refer to 23 - BODY/SEATS/SEAT-FRONT - INSTALLATION).
7. Install the sill covers (Refer to 23 - BODY/INTERIOR/SILL COVER-INTERIOR - INSTALLATION).
8. Install the cowl trim panels (Refer to 23 - BODY/INTERIOR/PANEL-COWL SIDE TRIM - INSTALLATION).
9. Install the lower B-pillar trim (Refer to 23 - BODY/INTERIOR/PANEL-B-PILLAR LOWER TRIM - INSTALLATION).
10. Install the rear quarter trim panels (Refer to 23 - BODY/INTERIOR/PANEL-QUARTER TRIM - INSTALLATION).
11. Instal the third row seats (Refer to 23 - BODY/SEATS/SEAT-THIRD ROW - INSTALLATION).
12. Install the second row seats (Refer to 23 - BODY/SEATS/SEAT-SECOND ROW - INSTALLATION).
