SWITCH
REMOVAL
WARNING:
The speed control switches is mounted in the steering wheel and wired through the clock spring device under the airbag module.
1. Adjust the steering wheel so that the tires are in the STRAIGHT-AHEAD position.
2. Remove the negative battery cable.
3. Turn off ignition.
4. Remove air bag, refer to the Restraint systems section.
5. Disconnect the connector from the clockspring.

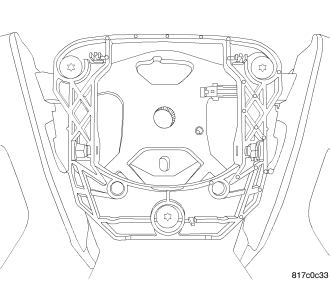

6. Remove the three mounting fasteners.
7. Remove the horn switch.

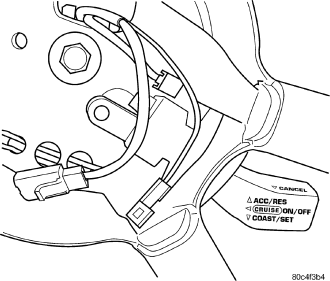

8. Remove 2 speed control switch mounting screws.
9. Disconnect the electrical connector.
10. Remove switch.
INSTALLATION
The speed control switch is mounted in the steering wheel and wired through the clock spring device under the airbag module.
1. Connect the electrical connector to speed control switch.
2. Install the 2 speed control screw.

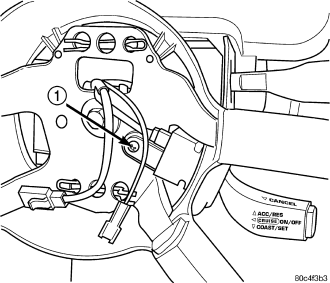

3. Tighten the screws (1) to 1.6 N·m (15 in. lbs.). Make sure rubber seal is in place around switch.
4. Install the horn switch.
5. Install the three mounting fasteners.
6. Connect the electrical connector to the clockspring.
7. Install the driver airbag (3). (Refer to 8 - ELECTRICAL/RESTRAINTS/DRIVER AIRBAG - INSTALLATION)
WARNING: Do not connect battery negative cable yet. Refer first to airbag system test. (Refer to 8 - ELECTRICAL/RESTRAINTS - DIAGNOSIS AND TESTING)
8. Reconnect battery using Airbag System Test procedure in Restraints. (Refer to 8 - ELECTRICAL/RESTRAINTS - DIAGNOSIS AND TESTING)
9. Close hood.
10. Verify vehicle and system operation.
