ANTENNA CABLE - SATELLITE RADIO
DESCRIPTION
The satellite radio antenna cable connects the roof mounted antenna to the satellite receiver module. It has two connectors at each end and is routed above the headliner, then behind the left quarter panel trim.
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the rear quarter trim panel. (Refer to 23 - BODY/INTERIOR/QUARTER PANEL TRIM - REMOVAL)
3. Lower the rear portion of the headliner as necessary to access the underside of the satellite antenna (Refer to 23 - BODY/INTERIOR/HEADLINER - REMOVAL).

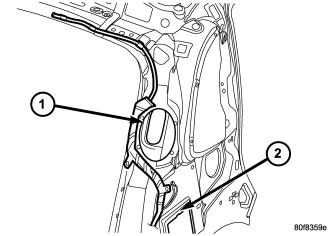

4. Detach the antenna cable (1) from the body harness. Disconnect wire harness connectors at each end of the cable.
INSTALLATION
1. Secure the antenna cable (1) to the body harness. Connect the wire harness connectors at each end of the antenna.
2. Install the headliner (Refer to 23 - BODY/INTERIOR/HEADLINER - INSTALLATION).
3. Install the rear quarter trim panel. (Refer to 23 - BODY/INTERIOR/QUARTER PANEL TRIM - INSTALLATION)
4. Connect the battery negative cable.
