HEADLINER
REMOVAL
1. Disconnect and isolate battery negative cable.
2. Using a trim stick C-4755 or equivalent, release the clips (2) and separate the A-pillar trim from the A-pillar.

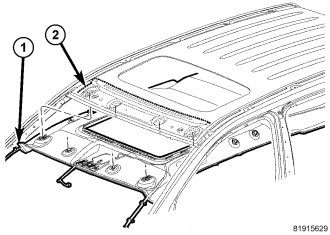

3. Disconnect the electrical connector (3) and release the wire harness support clips (1).
4. Remove the two screws that secure the sun visor to the roof panel and remove the sun visor from the headliner.
5. If equipped, disconnect the illuminated vanity mirror wire harness connector.
6. Remove the screw that secures the sun visor support to the roof panel and remove the support from the headliner.

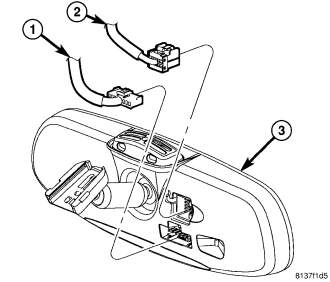

7. Disconnect the rear view mirror (3) electrical connectors (1 and 2).
8. Remove the assist handles by using a small pry tool or equivalent, release the assist handle (2) by prying out the clips (3) at either end.
9. Fold the rear seats into the down position.
10. Press the release buttons and remove the headrests.
11. Place the front seats into the recline position.

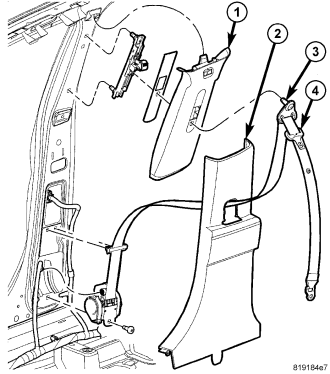

12. From one side of the vehicle, position aside the upper B-pillar trim (1) as necessary, (Refer to 23 - BODY/INTERIOR/PANEL - B-PILLAR TRIM, UPPER - REMOVAL).
13. From one side of the vehicle, position aside the C-pillar (1) trim as necessary, (Refer to 23 - BODY/INTERIOR/PANEL - C-PILLAR TRIM - REMOVAL).
14. Remove the push pin fasteners (3) and lower the rear of the head liner.
15. Disconnect the dome light (1) electrical connector.
16. Disconnect the washer hose, if equipped.

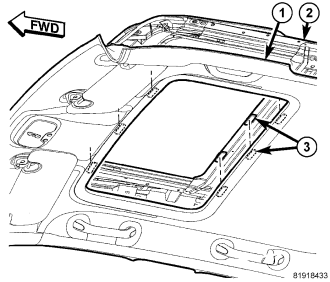

17. If equipped with a sunroof, separate the fasteners (3) and lower the headliner (1).
18. Disconnect the washer hose, if equipped, and remove the headliner (1).
INSTALLATION
1. Position the headliner into the vehicle and connect the washer hose at the front (1).
2. Tuck the headliner up over the remaining interior trim and connect the rear washer hose, if equipped.

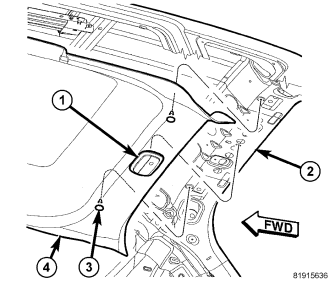

3. Connect the dome light (1) electrical connector and position the headliner (4) up onto the rear header (2).
4. Install the push pin fasteners (3).
5. If equipped with a sunroof seat the trim ring fasteners (3) fully.
6. Install the assist handles (2) and seat the retaining clips fully.

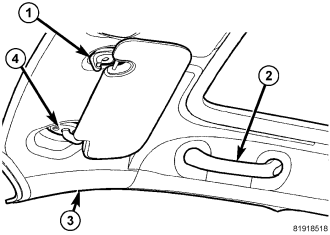

7. Install the visors (4) and supports (1) and install the screws.
8. Install the C-pillar trim (1), (Refer to 23 - BODY/INTERIOR/PANEL - C-PILLAR TRIM - INSTALLATION).
9. Install the upper B-pillar trim (1), (Refer to 23 - BODY/INTERIOR/PANEL - B-PILLAR TRIM, UPPER - INSTALLATION).
10. Return the seats into the upright positions.
11. Press the headrest sleeve release buttons and install the headrest.
12. Connect the rear view mirror (3) electrical connectors (1 and 2).
13. Position the wire harness onto the A-pillar (2) and seat the push pin retainers (1) fully.
14. Connect the electrical connector (3).
15. Position the bottom A-pillar tab into the top cover (1) and seat the retaining clips (2) fully.
