ANTENNA - EXPORT
REMOVAL

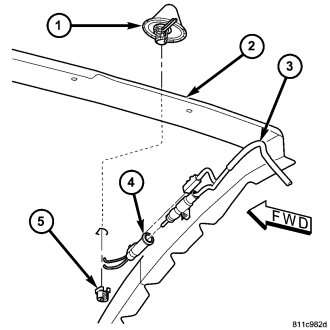

1. Disconnect and isolate the battery negative cable.
2. Lower the headliner as necessary to access antenna mounting fastener (Refer to 23 - BODY/INTERIOR/HEADLINER - REMOVAL).
3. Disconnect antenna cable and electrical harness connector (4).
4. Remove the mounting fastener.
5. Remove antenna from roof panel.
INSTALLATION
1. Position antenna to roof panel.
2. Install and tighten mounting fastener.
3. Connect antenna cable and electrical harness connector.
4. Raise headliner (Refer to 23 - BODY/INTERIOR/HEADLINER - INSTALLATION).
5. Connect battery negative cable.
