ANTENNA-SATELLITE
DESCRIPTION
The satellite radio antenna is secured by adhesive foam and retainers which protrude through a hole in the roof panel. Two wires from the antenna are connected to the body harness above the headliner.
OPERATION
The satellite radio antenna receives signals from orbiting satellites and sends these signals to the satellite receiver module. The satellite radio antenna must have open space in which to operate. Items carried on the roof, parking inside etc. can have an effect on the antenna's ability to receive signals.
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Lower the rear portion of the headliner as necessary to access underside of antenna (1) (Refer to 23 - BODY/INTERIOR/HEADLINER - REMOVAL).
3. An adhesive removal tool can be created by using an 18 to 24 inch piece of nylon cord (2) wrapped around two handles (3). Using the removal tool, guide the nylon cord under the dust seal on the forward side of the antenna. Grab the handles and work the cord through the adhesive. Continue this for 360° around the antenna.
4. Disconnect the wire harness connectors from the antenna.
5. From inside the vehicle, and using a flat bladed tool, depress one of the retaining tabs on the antenna. Push up the one side of the antenna connector through the roof panel. Depress the other side of the connector and remove the antenna.
6. Remove any remaining adhesive from roof panel with isopropyl alcohol and a lint free cloth. If original antenna is being reinstalled, remove adhesive from antenna mounting surface.
INSTALLATION

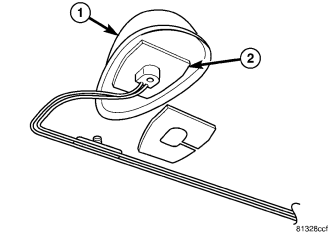

1. If original antenna is being reinstalled, remove backing from patch adhesive (2) and apply to antenna base (1).
2. Remove backing from the adhesive on the antenna.
3. Insert wire harness through hole in roof panel. Press antenna into position until both retainers snap into place.
4. Connect wire harness connectors to antenna.
5. Install headliner (Refer to 23 - BODY/INTERIOR/HEADLINER - INSTALLATION).
6. Connect battery negative cable.
