CABLE-GEAR SHIFT
REMOVAL
1. Remove the air box (1).
2. Disconnect the negative battery cable (2).

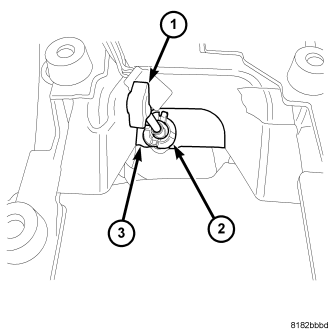

3. Remove shifter cable (2) at transmission bracket (3).
4. Remove the nut (4) on the shifter cable to shift lever.

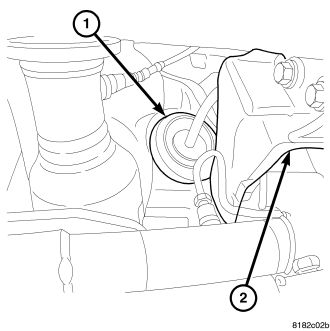

5. Remove the grommet (1) at the bulkhead.
6. Remove the shifter (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - CVT/SHIFT MECHANISM - REMOVAL).

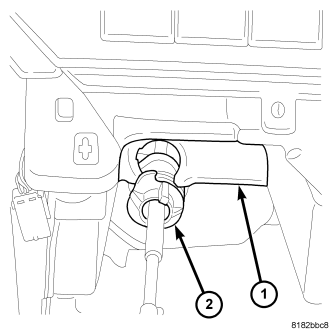

7. Squeeze clip (2) at cable (1).
8. Pull cable from bracket (2) at bulkhead (1).
9. Pull the cable (1, 2) through the bulkhead into the engine compartment.
INSTALLATION
1. Install the shifter cable (1, 2) through the bulkhead and into the passenger compartment.
2. Install the cable into the bracket (2) at bulkhead (1).
3. Insure that the cable clips into place.
4. Install the shifter (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - CVT/SHIFT MECHANISM - INSTALLATION).
5. Install the shifter cable grommet (1) at the bulkhead.
6. Clip the cable (2) into the bracket (1) install the nut (4) over the shifter cable at the transmission shift lever (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - CVT/GEAR SHIFT CABLE - ADJUSTMENTS).
7. Connect the negative battery cable (2).
8. Install the air box (1)
