MECHANISM-SHIFT
REMOVAL
1. Remove shift knob and shift bezel. (Refer to 23 - BODY/INTERIOR/SHIFT BEZEL - REMOVAL) (Refer to 23 - BODY/INTERIOR/SHIFT BEZEL - REMOVAL)

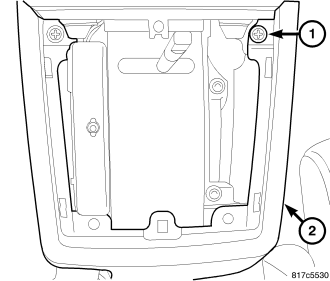

2. Remove two screws (1).

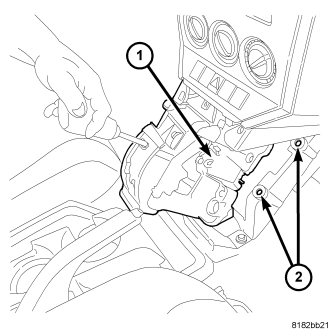

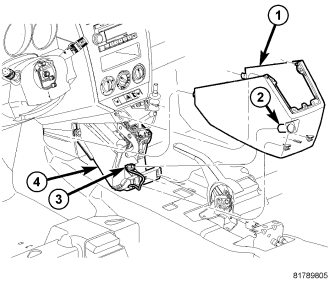

3. Pull on side of housing (1) and unsnap housing tabs.

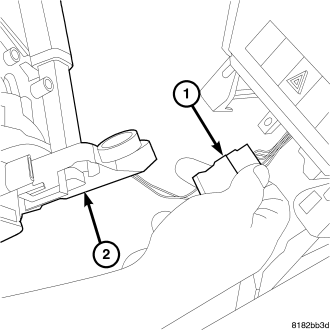

4. Disconnect console housing wire connector (2) and instrument panel connector (3).
5. Remove from vehicle.

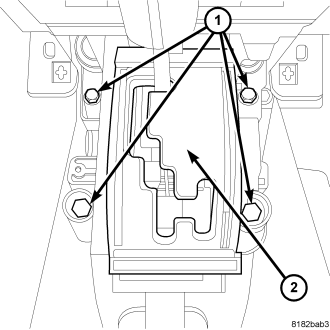

6. Remove the bolts (1) at the shifter.
7. Separate the shift cable from the shifter.
8. Lift the shifter enough to gain access to electrical connector.
9. Unplug the electrical connector at the shifter.
10. Remove the shifter.
INSTALLATION
1. Plug the electrical connector in at the shifter.
2. Install the shifter in place.
3. Clip the shift cable to the shifter.
4. Install the shifter bolts and tighten to 70 N·m (52 ft. lbs.).
5. Place console housing (1) over shifter lever ensuring console tabs seat properly.
6. Install screws (1).
7. Replace shift bezel and knob. (Refer to 23 - BODY/INTERIOR/SHIFT BEZEL - INSTALLATION) (Refer to 23 - BODY/INTERIOR/SHIFT BEZEL - INSTALLATION).
