SEAL-HALFSHAFT LEFT SIDE
REMOVAL
1. Remove halfshaft (Refer to 3 - DIFFERENTIAL & DRIVELINE/HALF SHAFT - REMOVAL).
2. Remove left side differential oil seal.
INSTALLATION

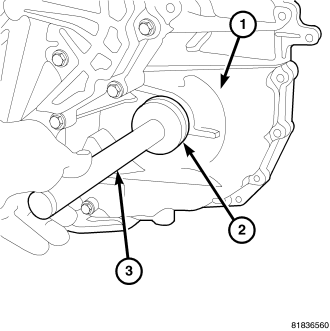

1. Install the left side differential oil seal using Installer 9871 (2) and Handle C-4171 (3).
2. Install halfshaft (Refer to 3 - DIFFERENTIAL & DRIVELINE/HALF SHAFT - INSTALLATION).
3. Road test vehicle and inspect for leaks.
