SEAL-HALFSHAFT RIGHT SIDE
REMOVAL
1. Remove halfshaft (Refer to 3 - DIFFERENTIAL & DRIVELINE/HALF SHAFT - REMOVAL).
2. If all wheel drive remove the PTU (Refer to 21 - TRANSMISSION/TRANSAXLE/POWER TRANSFER UNIT - REMOVAL).

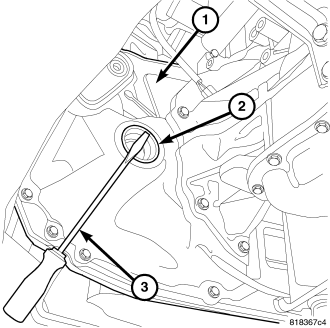

3. Remove the seal (2) form the transaxle using a screwdriver (3).
INSTALLATION

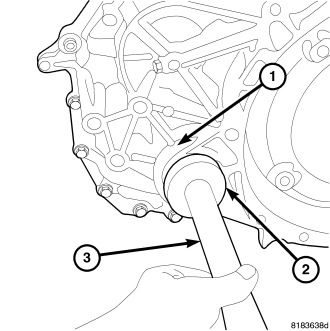

1. Install the seal using Installer 9877(2) and Handle C-4171 (3).
2. If all wheel drive install the PTU (Refer to 21 - TRANSMISSION/TRANSAXLE/POWER TRANSFER UNIT - INSTALLATION).
3. Install Halfshaft (Refer to 3 - DIFFERENTIAL & DRIVELINE/HALF SHAFT - INSTALLATION).
4. Road test vehicle and inspect for leaks.
