SEAL-AXLE
REMOVAL
1. Remove axle shaft. (Refer to 3 - DIFFERENTIAL & DRIVELINE/HALF SHAFT - REMOVAL)

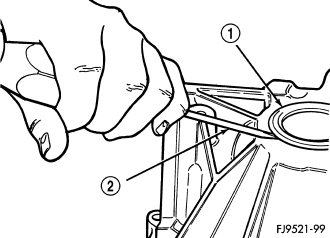

2. Insert a flat–blade pry tool (2) at outer edge of axle shaft seal (1).
3. Tap on the pry tool (2) with a small hammer and remove axle shaft seal (1).
INSTALLATION
1. Clean axle shaft seal bore of any excess sealant.
2. Align axle shaft seal with axle shaft seal bore.
3. Install axle seal on Seal Installer 9928 and Handle C-4171 and insert into axle shaft seal bore.
4. Tap seal into position until seated against transaxle case.
5. Install axle shaft. (Refer to 3 - DIFFERENTIAL & DRIVELINE/HALF SHAFT - INSTALLATION)
6. Check transaxle fluid level and adjust as necessary.
