SWITCH-BRAKE FLUID LEVEL
DESCRIPTION

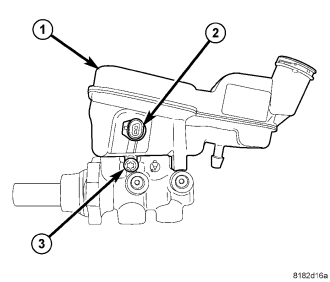

The brake fluid level switch (2) is mounted through the center of the fluid reservoir (1). The switch can be serviced separately from the master cylinder fluid reservoir.
REMOVAL
NOTE: Before proceeding, (Refer to 5 - BRAKES - WARNING) (Refer to 5 - BRAKES - CAUTION).

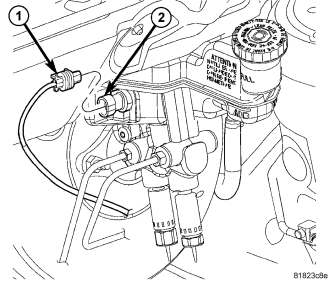

1. Remove the wiring harness connector (1) from the brake fluid level switch (2) in the master cylinder brake fluid reservoir.
2. Push together the retaining tabs (1) holding the brake fluid level switch in place in the brake fluid reservoir (2).
3. Pull the brake fluid level switch out the right side of the reservoir.
INSTALLATION
1. Align the brake fluid level switch with its mounting hole on the right side of the master cylinder brake fluid reservoir. Push the switch into the fluid reservoir until the switch retaining tabs (1) are expanded on the opposite side of the reservoir (2), locking it in place.
2. Connect the wiring harness connector (1) to the switch (2).
