C211E-BATTERY SUPPLY VOLTAGE LOW

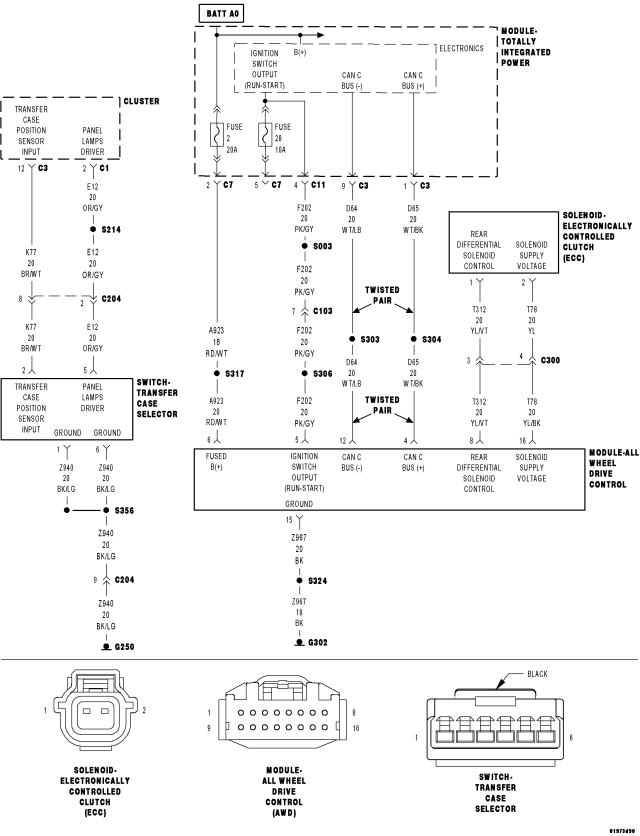

For a complete wiring diagram Refer to Section 8W



Possible Causes

CHARGING SYSTEM DTCS PRESENT

(A923) FUSED B+ CIRCUIT OPEN OR HIGH RESISTANCE

(Z967) GROUND CIRCUIT OPEN OR HIGH RESISTANCE

ALL WHEEL DRIVE (AWD) CONTROL MODULE

TOTALLY INTEGRATED POWER MODULE (TIPM)





Diagnostic Test

1. CHARGING SYSTEM DTCS PRESENT

Ignition on, engine not running.
With the scan tool, select View DTCs in the Powertrain Control Module.

Are there any Charging System or related voltage DTCs present?

Yes


No

2. CHECK FOR ACTIVE DTC

NOTE: Leave the ignition on for 2 seconds.


With the scan tool, read DTCs.

Is the DTC active at this time?

Yes


No

3. CHECK THE TIPM FUSED B+ VOLTAGE



While back probing, measure the voltage of the (A923) Fused B+ circuit in the TIPM C7 harness connector.

Is the voltage below 2 volts?

Yes


No

4. (A923) FUSED B+ CIRCUIT OPEN OR HIGH RESISTANCE



Turn the ignition off.
Disconnect the AWD module harness connector.
Ignition on, engine not running.
With a 12-volt test light connected to ground, check the (A923) Fused B(+) circuit in the AWD Control Module harness connector.

NOTE: The test light must illuminate brightly. Compare the brightness to that of a direct connection to the battery.



Does the test light illuminate brightly?

Yes


No

5. (Z967) GROUND CIRCUIT OPEN OR HIGH RESISTANCE



Using a 12-volt test light connected to B(+), check the (Z967) Ground circuit in the AWD Control Module harness connector.

NOTE: The test light must illuminate brightly. Compare the brightness to that of a direct connection to the battery.



Does the test light illuminate brightly?

Yes


No

6. AWD CONTROL MODULE

NOTE: Before continuing, check the AWD Module harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.


Using the schematics as a guide, inspect the wire harness and connectors.
Pay particular attention to all Power and Ground circuits.

View repair.

Repair

7. TOTALLY INTEGRATED POWER MODULE

NOTE: Before continuing, check the TIPM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.


Using the schematics as a guide, inspect the wire harness and connectors.
Pay particular attention to all Power and Ground circuits.

View repair.

Repair

8. INTERMITTENT WIRING AND CONNECTORS

The conditions necessary to set this DTC are not present at this time.
Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.
Wiggle test the wiring harness and connectors while checking for shorted and open circuits.
Using the scan tool, monitor the data related to this circuit while performing the wiggle test. Look for the data to change or for the DTC to reset.

Were there any problems found?

Yes


No
