OPERATION

A/C COMPRESSOR

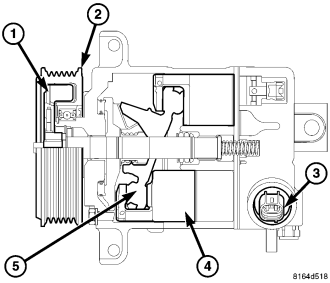

The A/C compressor draws in low-pressure refrigerant vapor from the A/C evaporator through its suction port. It then compresses the refrigerant into a high-pressure, high-temperature refrigerant vapor, which is then pumped to the A/C condenser through the compressor discharge port. The A/C compressor is lubricated by refrigerant oil that is circulated throughout the refrigerant system with the refrigerant (refer to 24 - HEATING & AIR CONDITIONING/PLUMBING/REFRIGERANT OIL - DESCRIPTION).

The A/C compressor is controlled by the powertrain control module (PCM) or engine control module (ECM), depending on engine application. The PCM/ECM calculates compressor displacement required by A/C system load and demand by monitoring vehicle speed, A/C high side pressure, engine speed, evaporator temperature, accelerator pedal position, ambient temperature and A/C-heater request signals. The PCM/ECM then sends a pulse width modulated (PWM) signal to the A/C compressor control solenoid to increase or decrease refrigerant flow through an orifice located within the compressor housing. The amount of refrigerant allowed to pass through the orifice in the compressor determines the head pressure which controls the angle of the swashplate, which in turn, determines the amount of compressor displacement. When there is no demand for A/C, the swashplate is adjusted to nearly a zero degree angle, which removes compressor torque drag from the engine.

This A/C compressor will reduce the displacement of the compressor based on ambient air temperature. For example; as the outside temperature falls from 27° C (80° F) to 19° C (66° F), the amount of refrigerant flow required through the A/C orifice valve to keep the A/C evaporator cool becomes less, and the swashplate is adjusted to a lower angle, which reduces compressor displacement. However, due to the lower outside air temperature, panel air outlet temperature will not noticeably change.

The A/C compressor control system is diagnosed using a scan tool (refer to 24 - HEATING & AIR CONDITIONING - DIAGNOSIS AND TESTING and to 24 - HVAC Electrical Diagnostics for more information).

CAUTION: Do NOT run the engine with a vacuum pump in operation or with a vacuum present within the A/C system. Failure to follow this caution will result in serious A/C compressor damage.

CAUTION: Be certain to adjust the refrigerant system oil level when replacing an A/C compressor (refer to 24 - HEATING & AIR CONDITIONING/PLUMBING/REFRIGERANT OIL - STANDARD PROCEDURE - REFRIGERANT OIL LEVEL). Failure to properly adjust the refrigerant oil level can prevent the A/C system from operating as designed and can cause serious A/C compressor damage.

NOTE: The compressor drive hub and the pulley and bearing assembly can not be serviced separately from the A/C compressor. In the event of drive hub or pulley and bearing assembly damage or failure, the A/C compressor, drive hub and pulley and bearing must be replaced as an assembly.

The A/C compressor cannot be repaired and it must be replaced if found inoperative or damaged. If an internal failure of the A/C compressor has occurred, the A/C accumulator and the A/C liquid line must also be replaced (refer to 24 - HEATING & AIR CONDITIONING/PLUMBING/ACCUMULATOR-A/C - DESCRIPTION) and (refer to 24 - HEATING & AIR CONDITIONING/PLUMBING/LINE-A/C LIQUID - DESCRIPTION).

HIGH PRESSURE RELIEF VALVE

The high pressure relief valve vents refrigerant from the A/C system when a discharge pressure of 3445 to 4135 kPa (500 to 600 psi) or above is reached. The high pressure relief valve closes with a minimum discharge pressure of 2756 kPa (400 psi) is reached.

The high pressure relief valve vents only enough refrigerant to reduce the A/C system pressure, and then re-seats itself. The majority of the refrigerant is conserved in the A/C system. If the high pressure relief valve vents refrigerant, it does not mean the valve is faulty.

The high pressure relief valve is factory-calibrated and cannot be adjusted or repaired, and must not be removed or otherwise disturbed. The valve is only serviced as a part of the A/C compressor.

HUB AND PULLEY

This compressor design does not require the use of an electromagnetic clutch, as the A/C compressor is controlled by an integral control valve that allows refrigerant to bypass within the compressor (refer to 24 - HEATING & AIR CONDITIONING/PLUMBING/COMPRESSOR-A/C - DESCRIPTION).

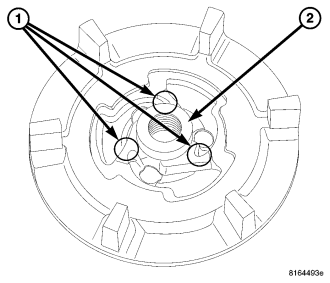

The three bridges (1) located on compressor drive hub (2) are designed to break away in the event of compressor seizure. This action prevents damage to the serpentine accessory drive belt (refer to 24 - HEATING & AIR CONDITIONING/PLUMBING/HUB AND PULLEY-A/C COMPRESSOR - INSPECTION).

NOTE: The compressor drive hub and the pulley and bearing assembly can not be serviced separately from the A/C compressor. In the event of drive hub or pulley and bearing assembly damage or failure, the A/C compressor, drive hub and pulley and bearing must be replaced as an assembly.

The compressor drive hub and the pulley and bearing assembly can not be serviced separately from the A/C compressor. The A/C compressor must be replaced if the drive hub or pulley and bearing assembly is found to be worn or damaged.
