REMOVAL

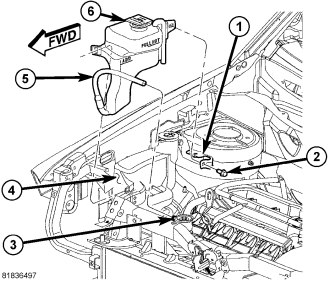

GAS ENGINE
1. Siphon coolant from coolant recovery container.
2. Remove return hose (5) from upper radiator hose tee (3).
3. Remove coolant recovery bottle mount bolt (2).
4. Disengage coolant recovery container (6) from washer reservoir bottle (4).
5. Remove coolant recovery container and drain.

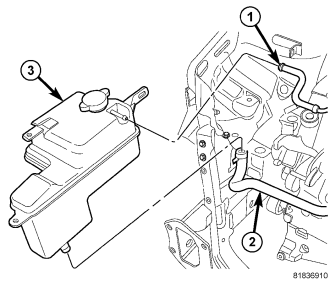

DIESEL
1. Partially drain cooling system using the draincock only (Refer to 7 - COOLING - STANDARD PROCEDURE). Drain system below level of the coolant recovery pressure container.
2. Disconnect return hose (1) at coolant recovery pressure container (3).
3. Remove coolant recovery pressure container bolt.
4. Lift container up at disconnect coolant hose (2) from bottom of coolant container.
5. Remove coolant recovery container from engine compartment.
