DOOR
REMOVAL
1. Disconnect and isolate the negative battery cable.

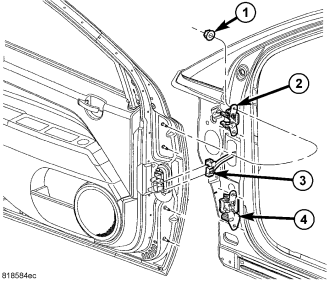

2. Disconnect the electrical connectors (3).
3. Using a grease pencil or equivalent, mark the location of the door hinges (2 and 4) on the door.
4. Support the door with a suitable lifting device and remove the nuts (1) that secure the door to the hinges.
5. Carefully remove the door from the hinges.
6. If necessary, remove the front door hinges from the A-pillar. (Refer to 23 - BODY/DOOR - FRONT/HINGE - REMOVAL)
INSTALLATION
1. Carefully position the door onto the hinges (2 and 4) and support the door with a suitable lifting device.
2. Loosely install the four nuts (1) that secure the door to the hinges.
3. Align the door to the hinges using the reference marks made during the removal procedure and tighten the nuts and bolts to 13 N·m (9.5 ft. lbs.).
4. Connect the electrical connectors (3).
5. Reconnect the negative battery cable.
6. If necessary, adjust the door (Refer to 23 - BODY/DOOR-FRONT - ADJUSTMENTS).
