HINGE
REMOVAL

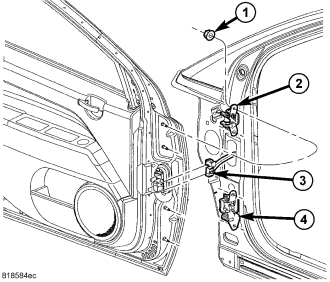

1. Remove the door, (Refer to 23 - BODY/DOOR - FRONT/DOOR - REMOVAL).
2. Using a grease pencil or equivalent, mark the hinge location and remove the bolts (2) and (4).
INSTALLATION
NOTE: A suitable body sealant should be used when removing or moving the hinges.

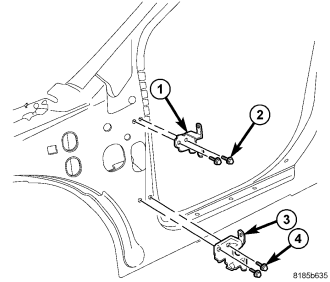

1. Install the hinges (1 and 3) and bolts (2 and 4).
2. Tighten the upper most hinge bolt (1) to hinge pillar to 22 N·m (16 ft. lbs.).
3. Tighten the lower most hinge bolt (4) to hinge pillar to 22 N·m (16 ft. lbs.).
4. Tighten the remaining hinge to hinge pillar bolts to 22 N·m (16 ft. lbs.).
5. Install the door. (Refer to 23 - BODY/DOOR - FRONT/DOOR - INSTALLATION)
