REGULATOR-WINDOW
REMOVAL
1. Remove the door trim module (1), (Refer to 23 - BODY/DOOR - FRONT/MODULE-DOOR TRIM - REMOVAL).

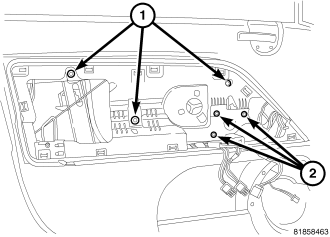

2. Remove the motor or manual lift mechanism screws (2).
3. Remove the lower regulator screws (2).

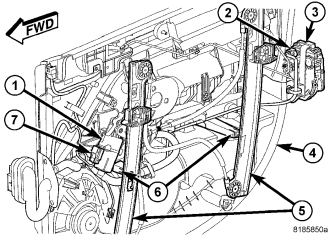

4. Disconnect the regulator motor (1) electrical connector (7), if equipped.
5. Separate the regulator runners (5) from the support brackets (6) and remove the regulator assembly.
INSTALLATION
1. Position the regulator assembly onto the door trim panel and seat the runner support clips (6) fully.
2. Connect the regulator motor (1) electrical connector (7).
3. Install the lower regulator screws (2) but do not tighten them at this time.
4. Install the motor or manual lift mechanism screws (2).
5. Install the door trim module (1), (Refer to 23 - BODY/DOOR - FRONT/MODULE-DOOR TRIM - INSTALLATION).
