MODULE-DOOR TRIM
DESCRIPTION
Door trim modules include the hardware, window regulators, latch, remote handle and links, speakers and wiring harness. In addition to providing manufacturing efficiencies, the door modules benefit the customer too. Having all the parts assembled into a module improves build accuracy and fit and finish between the components and trim as a result of greater communication between the release engineers and suppliers.
Lower door trim (from the beltline down) is molded polypropylene. The door trim is two-tone with a darker color matching the instrument panel in the upper third and a lighter shade for the lower two-thirds, including the bolster and substrate.
Items Serviceable without removing module or opening bolster:
- Speaker grille
- Speaker
- I/s handle screw cover
- Front door mirror flag cover
- Fasteners accessible :
- Substrate and lower window regulator screws
- Speaker screws (after grille removal)
- Pull cup screw
- I/s handle screw (after cover removal)
Items Serviceable without removing module but with opening of bolster:
- Electric window switch
- Electric mirror switch (front driver door only)
- Bolster trim assembly
- Bolster seal
- Sock seals on switches
- Outside handle link
- Front door lock and rod assembly
- Front door latch
- Fasteners accessible :
- Pull cup clip
- Upper window regulator screws
- Pull cup screw (to biw)
Items Serviceable by removing entire module:
- Rear door latch
- Window regulator
- Inside remote handle
- Inside handle links
- Periphery seal (around edge of trim)
- Wire harness
REMOVAL

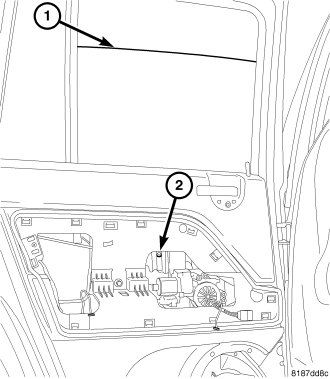

1. Raise the door glass (1) into the position shown and disconnect the glass from the regulator (2), (Refer to 23 - BODY/DOORS - REAR/GLASS - REMOVAL).
2. Tape the glass (1) into the full up position.

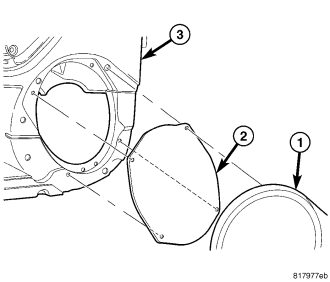

3. Remove the speaker (2), (Refer to 8 - ELECTRICAL/AUDIO/SPEAKER - REMOVAL).

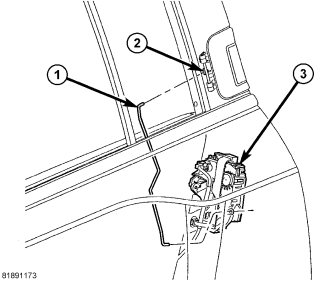

4. Disconnect the exterior handle rod (1) from the latch (3).

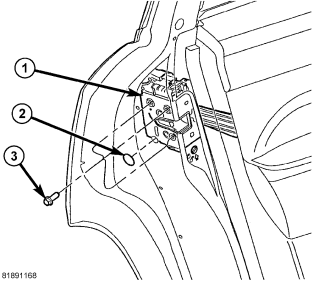

5. Remove the latch screws (3).

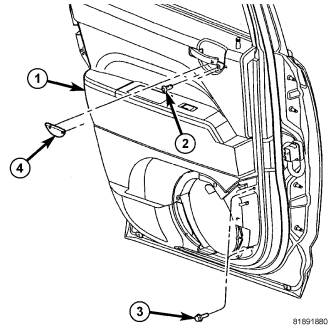

6. Remove the trim screws (3) from the speaker opening.
7. Remove the trim cap (4) and the screw (2) at the inside handle.

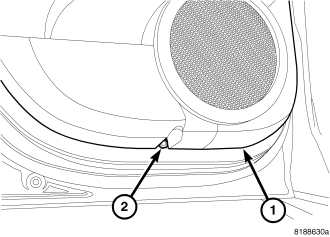

8. Loosen the lower screw (2).
9. Disconnect the main harness connector (1).
10. Remove the screws (3) from the door frame.

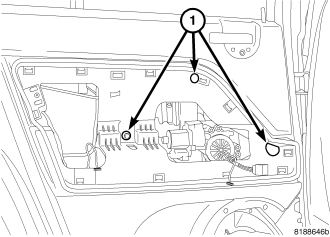

11. Remove the three upper fasteners (1).

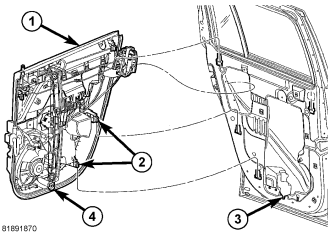

12. Lift the module (1) up off of the four trim hooks (2) and lower regulator screw (4).
13. Pull the front of the trim module (1) out from the door and forward to remove the latch.
14. Separate the harness (2) from the door.
INSTALLATION

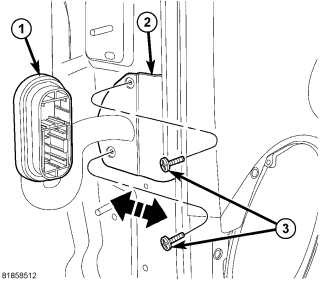

1. Position the wire harness door bracket (2) into the door and install the screws (3).
2. Position the latch into the door and set the trim module (1) into place.
3. Position the four trim hooks (2) and lower the regulator screw (4) into the corresponding slot (3) in the door and seat the trim module fully.
4. Install the upper regulator screws (1) and tighten to 6 N·m (53 in. lbs.).
5. Tighten the lower trim screw (2) to 6 N·m (53 in. lbs.).
6. Install the screws (3) in the front corner and tighten to 6 N·m (53 in. lbs.).
7. Install the screw (2) at the inside handle and seat the trim (4) fully.
8. Install the latch screws (3) and tighten to 7 N·m (62 in. lbs.).
9. Connect the exterior handle rod (1) to the latch (3).
10. Install the speaker (2), (Refer to 8 - ELECTRICAL/AUDIO/SPEAKER - INSTALLATION)
11. Release the glass (1) from the tape connect the glass to the regulator lift plate (2).
12. Complete the glass installation as necessary, (Refer to 23 - BODY/DOORS - REAR/DOOR GLASS - INSTALLATION)
