REGULATOR-WINDOW
REMOVAL

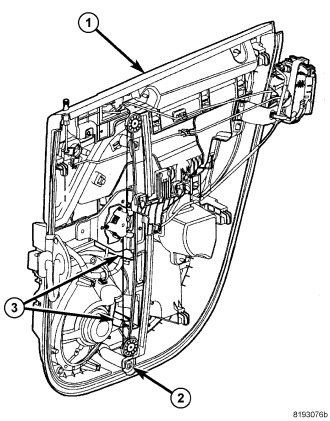

1. Remove the door trim module (1), (Refer to 23 - BODY/DOORS - REAR/MODULE-DOOR TRIM - REMOVAL).
2. Remove the lower regulator screw (2).
3. Disconnect the regulator motor electrical connector, if equipped.
4. Separate the regulator runner from the support brackets (3) and remove the regulator assembly.
INSTALLATION
1. Position the regulator assembly onto the door trim panel (1) and seat the runner support clips (3) fully.
2. Connect the regulator motor electrical connector, if equipped.
3. Install the lower regulator screw (2) but do not tighten them at this time.
4. Install the door trim module (1), (Refer to 23 - BODY/DOOR - FRONT/MODULE-DOOR TRIM - INSTALLATION).
