2007 Compass Patriot MK Factory Service Manual 9 - ENGINE

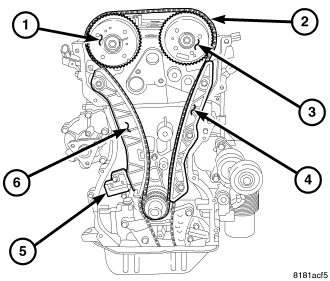

TENSIONER-TIMING CHAIN

REMOVAL




1. Remove timing chain (Refer to 9 - ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - REMOVAL).

NOTE: Tensioner will not come apart during removal.


2. Remove timing chain tensioner retaining bolts and remove tensioner.

INSTALLATION




1. Reset tensioner.
2. Install timing chain (Refer to 9 - ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - INSTALLATION).
