REMOVAL
TIMING CHAIN

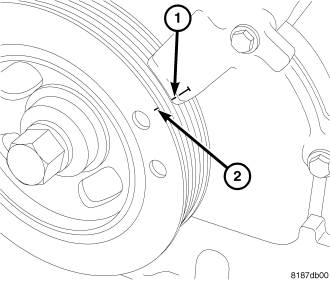

1. Set engine to TDC.
2. Remove timing chain cover (Refer to 9 - ENGINE/VALVE TIMING/TIMING BELT / CHAIN COVER(S) - REMOVAL).
NOTE: If the timing chain plated links can no longer be seen, the timing chain links corresponding to the timing marks must be marked prior to removal if the chain is to be reused.

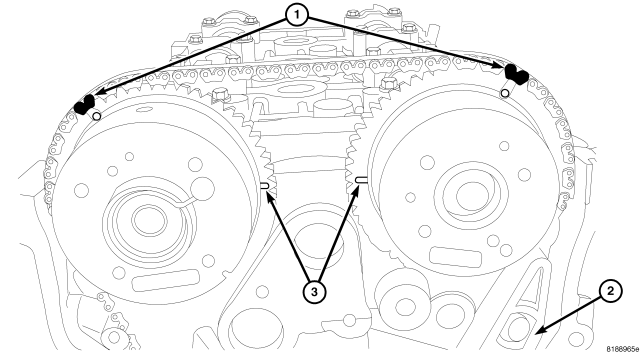

3. Mark chain link (1) corresponding to camshaft timing mark.

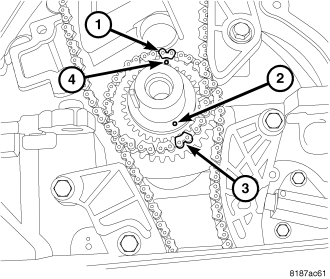

4. Mark chain link (3) corresponding to crankshaft timing mark (2).

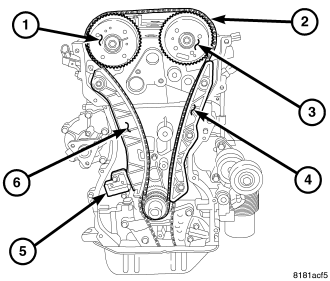

5. Remove timing chain tensioner (5) (Refer to 9 - ENGINE/VALVE TIMING/TMNG BELT/CHAIN TENSIONER&PULLEY - REMOVAL).
6. Remove timing chain (2).
CAMSHAFT SPROCKET(S)
NOTE: Camshaft phasers and camshaft sprockets are supplied as an assembly, do not attempt to disasemble.
Refer to camshaft phaser removal (Refer to 9 - ENGINE/CYLINDER HEAD/CAMSHAFT(S) - REMOVAL).CRANKSHAFT SPROCKET
1. Remove timing chain (Refer to 9 - ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - REMOVAL).
2. Remove oil pan (Refer to 9 - ENGINE/LUBRICATION/OIL PAN - REMOVAL).
3. Remove oil pump drive chain tensioner.
4. Remove oil pump drive chain.

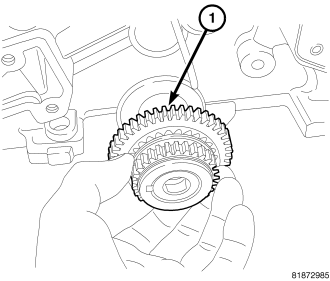

5. Remove crankshaft sprocket (1).
