HOOD
REMOVAL

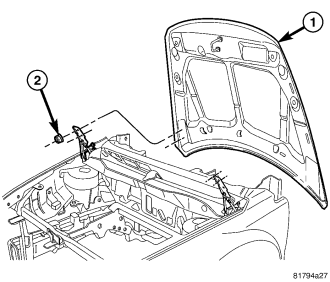

1. Raise hood.
2. Using a grease pencil or equivalent, mark location of hood hinges on hood for installation alignment.
3. Remove bolts (2) attaching hinges to hood.
4. With the aid of a helper, remove hood (1) from vehicle.
INSTALLATION
1. Position hood (1) on hinges.
2. Install bolts (2) finger-tight.
3. Align hinges with installation reference marks made previously and tighten bolts to 20 N·m (15 ft. lbs.).
4. If required, adjust the hood to the correct position (Refer to 23 - BODY/BODY STRUCTURE/GAP AND FLUSH - SPECIFICATIONS).
