LATCH RELEASE CABLE
REMOVAL

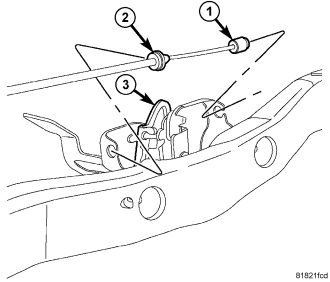

1. Disconnect the latch cable (1) from the latch (3).
2. Separate the cable (2) from the latch (3).

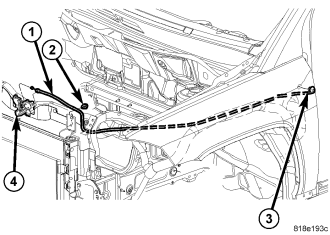

3. Release the push pin fasteners (2).
4. Remove the cowl trim panel, (Refer to 23 - BODY/INTERIOR/PANEL - COWL SIDE - REMOVAL).

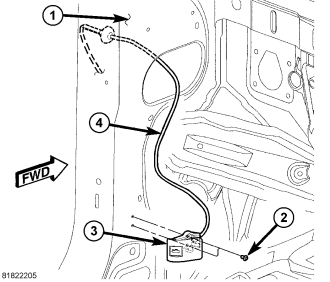

5. Remove the screws (2) and separate the handle (3) from the cowl.
6. Remove the cable from the cowl panel from the inside of the car.
INSTALLATION
1. Install the cable (1) and route through the cowl panel (3).
2. Install the push pin fastener (2).
3. Install the handle (3) and install the screws (2).
4. Install the cowl trim panel, (Refer to 23 - BODY/INTERIOR/BEZEL - CONSOLE SHIFTER - REMOVAL)
5. Connect the hood latch cable (1 and 2) to the hood latch (3).
