INSTRUMENT PANEL CENTER BEZEL
REMOVAL

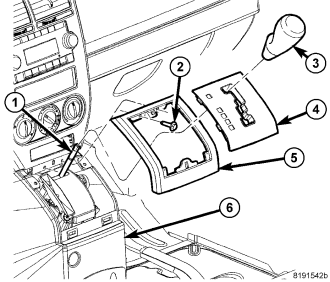

1. Remove the shifter trim rings (4 and 5), (Refer to 23 - BODY/INTERIOR/BEZEL - CONSOLE SHIFTER - REMOVAL)

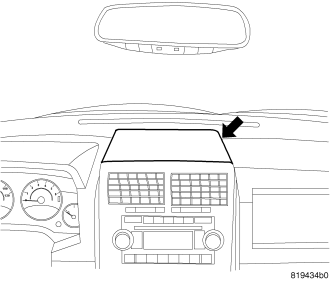

2. Using a trim stick C-4755 or equivalent, remove the upper trim cover over the center bezel and radio.

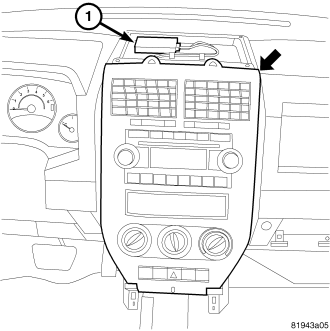

3. Using a trim stick C-4755 or equivalent, separate the center bezel from the I/P.

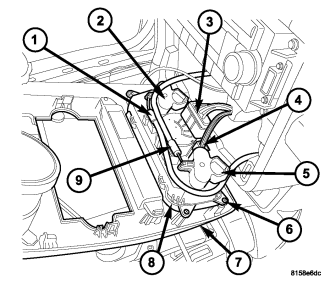

4. Disconnect the HVAC controller electrical connectors (3) and control cables (1 and 9)
INSTALLATION
1. Connect the HVAC electrical connectors (3) and control cables (1 and 9).
2. Position the center bezel onto the I/P and seat the retaining clips fully.
3. Install the shift bezels (4 and 5), (Refer to 23 - BODY/INTERIOR/BEZEL - CONSOLE SHIFTER - INSTALLATION)
