PANEL - D-PILLAR TRIM
REMOVAL
NOTE: Left side shown, right side similar.
1. Remove the quarter trim panel (2), (Refer to 23 - BODY/INTERIOR/PANEL - QUARTER TRIM - REMOVAL).
Left Side

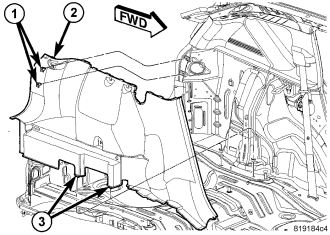

1. Using a trim stick C-4755 or equivalent, separate the retaining clips (2) and remove the left D-pillar trim panel, if required.
Right Side

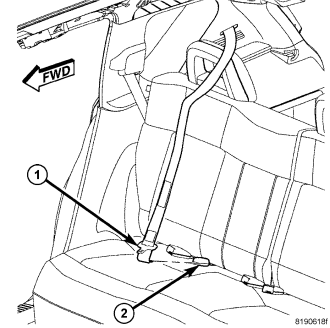

1. If the second row center seat belt lower anchor (1) is connected, access and unbuckle the lower anchor latch plate from the unique, keyed lower anchor buckle (2). Use an ignition key or a small screwdriver to depress the small latch release button on the anchor buckle.
2. Separate the D-pillar trim retaining clips (3), using a trim stick C-4755 or equivalent.

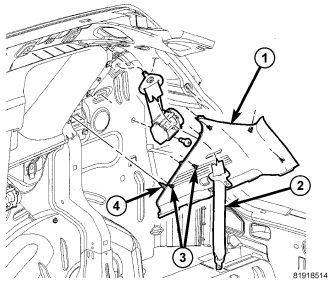

3. Pull the seat belt (2) through the hole in the D-pillar trim (1) and remove.
INSTALLATION
Right Side
1. Pull the seat belt through the hole in the trim (1) and position the trim onto the body while inserting the alignment pin (4) into the C-pillar trim.
2. Seat the retaining clips (3) fully.
3. Access and buckle the second row center seat belt lower anchor latch plate (1) to the unique, keyed lower anchor buckle (2).
Left Side
1. position the trim (1) onto the body while inserting the alignment pin (3) into the C-pillar trim.
2. Seat the retaining clips (2) fully.
1. Install the quarter trim panel (2), (Refer to 23 - BODY/INTERIOR/PANEL - QUARTER TRIM - INSTALLATION).
