PANEL - QUARTER TRIM
REMOVAL
1. Lift the cargo floor up and disengage from the rear pivots.
2. Remove the door scuff plate (3), (Refer to 23 - BODY/INTERIOR/PLATE - DOOR SCUFF - REMOVAL).
3. Fold the rear seat back into the down position.

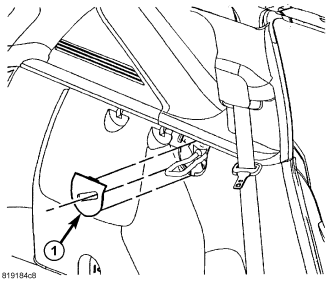

4. Using a trim stick C-4755 or equivalent, remove the latch trim bezel (1).
5. Using a trim stick C-4755 or equivalent, release the retaining clips (2) and remove the liftgate scuff plate (1).
6. Remove the cargo hook and retainer, if equipped.
7. Separate the quarter trim panel (2) from the body and remove.
INSTALLATION
1. Position the quarter trim tabs (3) into the appropriate slots in the body and seat the trim (2) fully.
2. Install the cargo hook and retainer if necessary.
3. Position the liftgate scuff plate (1) onto the liftgate sill and seat the retaining clips (2) fully.
4. Position the seat latch striker trim (1) back into place and seat fully.
5. Fold the seat back up and install the door sill scuff plate (3), (Refer to 23 - BODY/INTERIOR/PLATE - DOOR SCUFF - INSTALLATION).
6. Position the cargo floor into the vehicle and engage the rear pivots.
7. Seat the floor cover fully.
