GEAR SELECTOR LAMP
REMOVAL
NOTE: This procedure applies only to vehicles equipped with an optional automatic transmission.
1. Disconnect and isolate the battery negative cable.
2. Remove the gear selector bezel from the center floor console (1). (Refer to 23 - BODY/INTERIOR/SHIFT BEZEL - AUTOMATIC - REMOVAL).

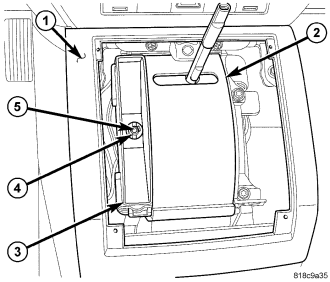

3. Firmly grasp and pull the bulb (5) straight out of the socket (4) in the light box (3) on the left side of the gear selector mechanism (2).
INSTALLATION
CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.
NOTE: This procedure applies only to vehicles equipped with an optional automatic transmission.
1. Align the base of the bulb (5) with the socket (4) in the light box (3) on the left side of the gear selector mechanism (2).
2. Push the bulb straight into the socket until the base is firmly seated.
3. Reinstall the gear selector bezel onto the center floor console (1). (Refer to 23 - BODY/INTERIOR/SHIFT BEZEL - AUTOMATIC - INSTALLATION).
4. Reconnect the battery negative cable.
