LATCH
REMOVAL
1. Remove the lower liftgate trim panel (3), (Refer to 23 - BODY/LIFTGATE/PANEL - TRIM - REMOVAL).

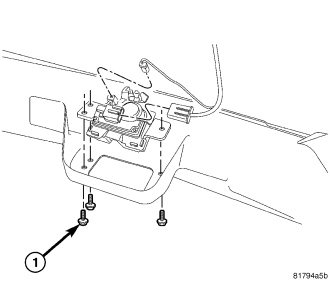

2. Remove three fasteners (1).
3. Disconnect the electrical connectors.
4. Disconnect the release cable.
INSTALLATION
1. Connect the electrical connectors.
2. Install latch assembly into liftgate pocket.
3. Install three fasteners (1) and tighten to 8 N·m (6 ft. lbs.).
4. Install cable fastener to liftgate inner while working the cable upward.
5. Guide cable upward through opening and tuck into the outer handle hole.
6. Install the lower liftgate trim (3), (Refer to 23 - BODY/LIFTGATE/PANEL - TRIM - INSTALLATION).
