MOTOR/MODULE - SUNROOF
REMOVAL
1. Remove headliner. (Refer to 23 - BODY/INTERIOR/HEADLINER - REMOVAL)

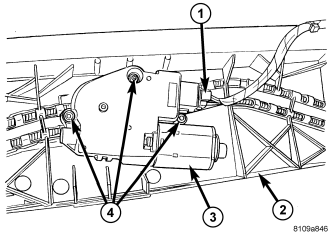

2. Disconnect the electrical connector (1).
3. Remove three motor assembly attaching screws (4) from bottom side of motor assembly (3) and remove motor assembly from the motor bracket.
INSTALLATION
1. If sunroof was open when drive motor was removed, carefully move glass panel into closed position and remove glass panel. (Refer to 23 - BODY/SUNROOF/GLASS PANEL - REMOVAL)

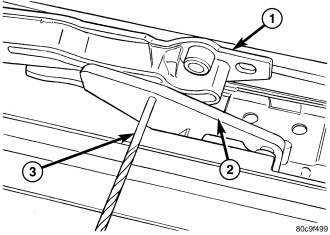

2. Set lifter arm timing by manually sliding the mechanisms (1) in the track until timing holes in the trollies are aligned with the timing holes in the lifter arm cams (2) and insert pins (3) into the mechanisms to hold mechanisms in closed position.
3. Place motor (3) into position and install screws (4) attaching motor to bracket (2).
4. Tighten the screws (4) to 3 N·m (26 in. lbs.).
5. If sunroof glass panel was removed previously, remove the timing pins and install the sunroof glass panel. (Refer to 23 - BODY/SUNROOF/GLASS PANEL - INSTALLATION)
6. Partially install the headliner and connect the sunroof wiring electrical connectors. (Refer to 23 - BODY/INTERIOR/HEADLINER - INSTALLATION)
7. Temporarily install sunroof switch and perform the sunroof motor teach procedure. (Refer to 23 - BODY/SUNROOF/DRIVE MOTOR - STANDARD PROCEDURE - TEACH PROCEDURE)
8. Test sunroof operation, adjust glass as necessary. (Refer to 23 - BODY/SUNROOF/GLASS PANEL - ADJUSTMENTS)
9. Complete the headliner installation. (Refer to 23 - BODY/INTERIOR/HEADLINER - INSTALLATION)
