SEALS-END COVER
REMOVAL
1. Remove the right halfshaft (Refer to 3 - DIFFERENTIAL & DRIVELINE/HALF SHAFT - REMOVAL).

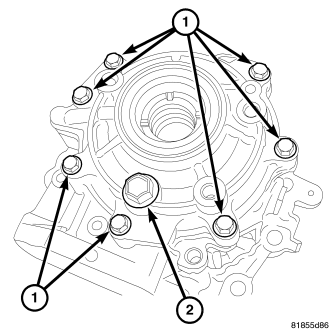

2. Remove the side cover bolts.
3. Remove the side cover.

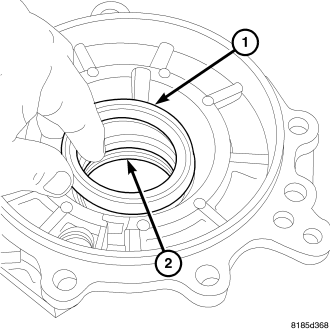

4. Using a drift remove both inner and outer seals.
INSTALLATION

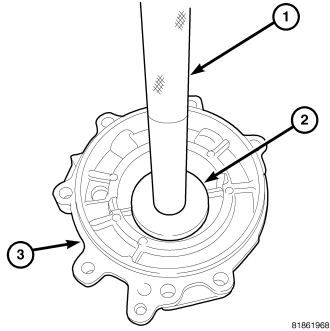

1. Install the inner seal into the PTU cover using Installer 9852 and Handle C-4171.

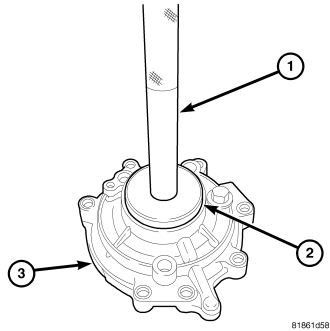

2. Install the outer seal into the PTU cover using Installer 9853 and Handle C-4171.
3. Install the side cover.
4. Tighten side cover bolts (1) to 23 N·m (17 ft. lbs.).
5. Install the right halfshaft (Refer to 3 - DIFFERENTIAL & DRIVELINE/HALF SHAFT - INSTALLATION).
