POWER WINDOW SWITCH
DIAGNOSIS AND TESTING - POWER WINDOW SWITCH

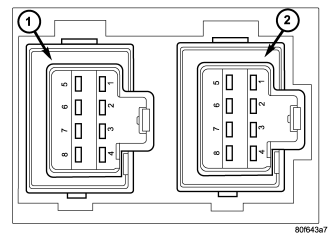

Remove the switch. Using an ohmmeter, test the window switch for continuity in all positions listed in the Continuity Table. Refer to the Power Window Switch Continuity table to determine if continuity is correct.
| SWITCH POSITION |
CONTINUITY BETWEEN |
| FRONT WINDOW SWITCH |
|
| LOCKOUT SWITCH (TOP OF SWITCH DEPRESSED) |
PIN 12 AND 5 |
| LEFT FRONT UP |
PIN 12 AND 14 |
| RIGHT FRONT UP |
PIN 12 AND 7 |
| LEFT REAR UP |
PIN 12 AND 8 |
| LEFT REAR DOWN |
PIN 12 AND 9 |
| RIGHT REAR UP |
PIN 12 AND 1 |
| RIGHT REAR DOWN |
PIN 12 AND 2 |
| LEFT OR RIGHT REAR SWITCH |
|
| OFF |
PIN 2 AND 5 PIN 3 AND 8 |
| UP |
PIN 4 AND 5 |
| DOWN |
PIN 4 AND 8 |
To test the left front down and express down switch position, connect pin 4 to ground and pin 12 to a 12 volt source. Using a voltmeter, measure for voltage from pin 13 to ground.
To test the right front down and express down switch position, connect pin 4 to ground and pin 12 to a 12 volt source. Using a voltmeter, measure for voltage from pin 3 to ground. If the correct results are not obtained, replace the switch.
REMOVAL
1. Disconnect and isolate the battery negative cable .
2. Remove the front door bolster. (Refer to 23 - BODY/DOOR - FRONT/DOOR - REMOVAL).
3. Disconnect the electrical harness connectors.

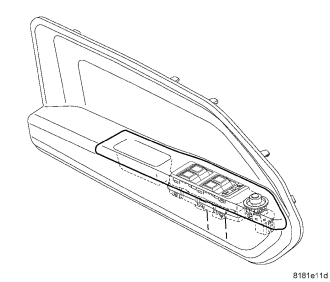

4. With the bolster on the bench, gently pry in on the tabs of the mirror switch and push through the front of the cover and remove.
INSTALLATION
1. Place the mirror switch in bolster opening and firmly snap into place.
2. Connect the electrical harness connectors.
3. Install the front door bolster. (Refer to 23 - BODY/DOOR - FRONT/DOOR - INSTALLATION)
4. Connect the battery negative cable.
