SEAT CUSHION - FRONT
REMOVAL
1. Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to 23 - BODY/SEATS - WARNING)
2. Move the seat to the forward position and disconnect and isolate the negative battery cable.

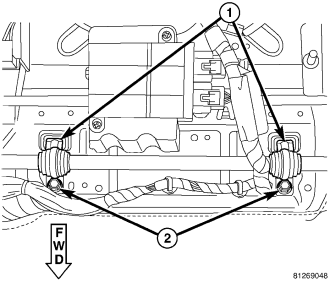

3. Remove the bolts (2) and the straps (1).
4. Disconnect the electrical connector, if equipped.

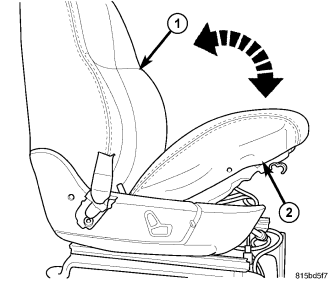

5. Lift the front of the seat cushion (2) up and slide out from under the seat back cushion (1).
DISASSEMBLY
1. Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to 23 - BODY/SEATS - WARNING)
2. Remove the seat cushion, (Refer to 23 - BODY/SEATS/SEAT CUSHION - FRONT - REMOVAL)

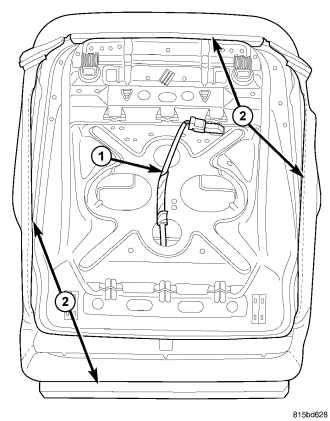

3. Release the seat cushion cover J-straps (2) from the seat pan and remove the cushion from the pan.

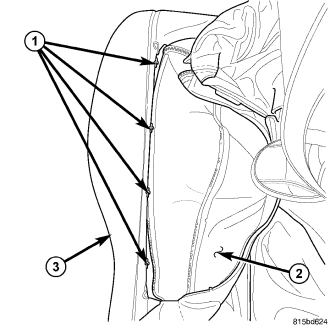

4. Remove the hog rings (1) and separate the seat cushion cover (2) from the seat cushion foam (3).
ASSEMBLY
1. Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to 23 - BODY/SEATS - WARNING)
2. Position the seat cushion cover (2) over the seat cushion foam (3) and attach new hog rings (1).
3. Connect the seat cushion cover J-straps (2) to the seat pan.
INSTALLATION
1. Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to 23 - BODY/SEATS - WARNING)
2. Position the rear of the seat cushion assembly (2) back under the seat back (1) and position the front of the cushion down over the seat adjuster frame.
3. Install the seat cushion bushings and straps (1) and install the bolts (2).
4. Tighten the bolts to 11 N·m (8 ft. lbs.).
