SEAT CUSHION - REAR
REMOVAL
1. Remove the bolts (2).
2. Lift the front of the cushion (3) up and remove the cushion from under the seat back.
DISASSEMBLY
1. Remove the seat cushion (Refer to 23 - BODY/SEATS/SEAT CUSHION - REAR - REMOVAL)

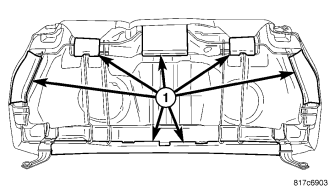

2. Separate the J-straps (1) from the seat frame.

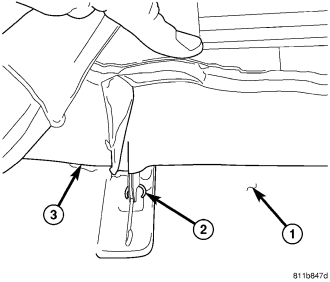

3. Remove the hog rings (2) connecting the seat cover (3) to the seat cushion foam (1) and separate from the seat cushion frame.
ASSEMBLY
1. Place the cushion cover (3) onto the cushion foam (1) and install new hog rings (2).
2. Connect the J-straps (1) to the seat cushion frame.
3. Install the seat cushion (Refer to 23 - BODY/SEATS/SEAT CUSHION - REAR - INSTALLATION)
INSTALLATION
1. Place the seat cushion into the vehicle and tuck the rear of the cushion (1) up under the seat belt buckles and rear seat back.
2. Lower the front of the cushion (3) down and install the bolts (2).
3. Tighten the bolts to 80 N·m (60 ft. lbs.).
