REMOVAL
GAS ENGINE

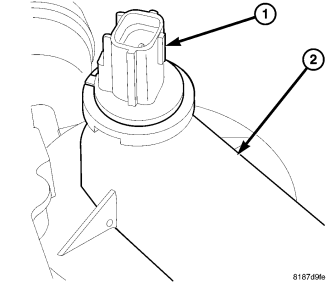

CYLINDER BLOCK MOUNTED
1. Disconnect negative battery cable.
2. Partially drain cooling system below level of ECT Sensor.
3. Disconnect ECT Sensor electrical connector.
4. Remove ECT Sensor.

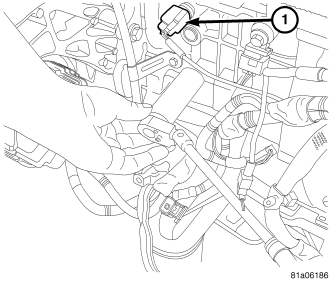

COOLANT ADAPTER MOUNTED
1. Disconnect negative battery cable.
2. Partially drain cooling system below level of ECT Sensor (1).
3. Disconnect ECT Sensor electrical connector.
4. Remove ECT Sensor (1).

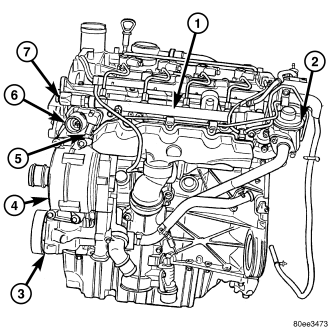

DIESEL ENGINE
1. Disconnect negative battery cable.
2. Remove engine cover (Refer to 9 - ENGINE - REMOVAL) .
3. Partailly drain coolant system below pressurized coolant recovery container (Refer to 7 - COOLING/ENGINE/COOLANT - STANDARD PROCEDURE).
4. Unplug coolant temperature sensor electrical connector.
NOTE: Capture any residual coolant that may flow.
5. Remove coolant temperature sensor (5).
