ADJUSTMENTS
ADJUSTMENT
1. Remove shift knob and shift bezel. (Refer to 23 - BODY/INTERIOR/SHIFT BEZEL - REMOVAL) (Refer to 23 - BODY/INTERIOR/SHIFT BEZEL - REMOVAL)

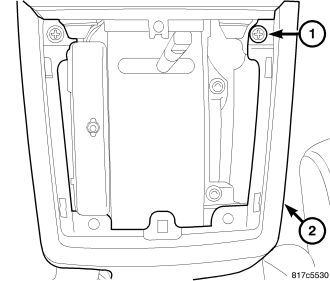

2. Remove two screws (1).

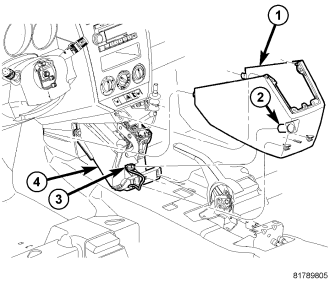

3. Pull on side of housing (1) and unsnap housing tabs.
4. Disconnect console housing wire connector (2) and instrument panel connector (3).
5. Remove from vehicle.
6. Adjust interlock cable/system as follows:Pry up on cable adjuster lock to release and allow cable to “self-adjust”. Lock cable adjustment by pressing down on the adjuster lock until bottomed at the cable housing.
