HOSE-DRAIN
REMOVAL
1. Drop down the headliner as necessary to gain access to the drain hoses (Refer to 23 - BODY/INTERIOR/HEADLINER - REMOVAL).

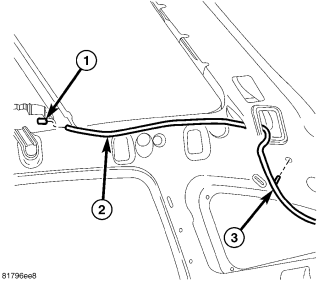

2. Disconnect the front hoses (2) from the sunroof assembly (1).
3. Release the support clips (3) and disconnect the lower grommet and remove the hose.
4. Disconnect the rear hoses (2) from the sunroof assembly (1) and release the support clips (3).
5. Separate the remaining support clips (1).
6. Disconnect the grommet (2) from the body (3) and remove the rear hoses as necessary.
INSTALLATION

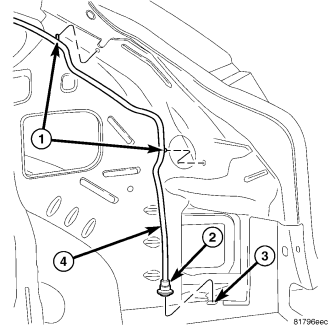

1. Install the rear hoses (4) and connect the grommets (2) to the body (3).
2. Connect the support clips (1).
3. Route the hose as required and connect the remaining support clips (3).

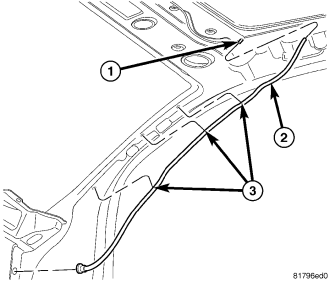

4. Connect the hoses (2) to the sunroof assembly (1).
5. Connect the front hose lower grommet to the body.
6. Connect the front hose (2) to the sunroof assembly (1) and connect the support clips (3).
