INSTALLATION
GAS ENGINE
1. Position accessory drive belt tensioner (8) and install mounting bolt (1). Tighten bolt (1) to 24 N·m (212 in. lbs.) .
2. Install accessory drive belt (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION).

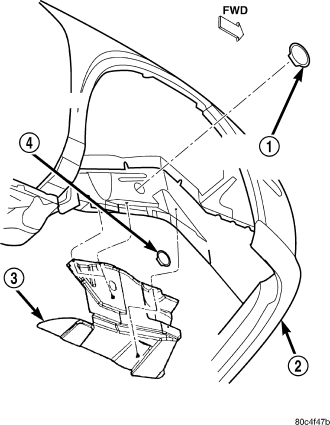

3. Install belt splash shield (3).
4. Lower vehicle.
DIESEL ENGINE
1. Install tensioner pulley (7) and bolt, if removed. Tighten bolt to 27 N·m (20 ft. lbs.).
2. Install tensioner assembly (8) to engine and tighten bolt to 54 N·m (40 ft. lbs.).
3. Install accessory drive belt (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION).
