INSTALLATION
FRONT
1. Position the front washer nozzle (2) to the mounting hole on the outside of the hood panel (1).
2. Align the anti-rotation tab of the nozzle with the anti-rotation notch in the mounting hole.
3. Using hand pressure, push firmly and evenly on the top of the nozzle until the integral latches lock into place on the underside of the hood.

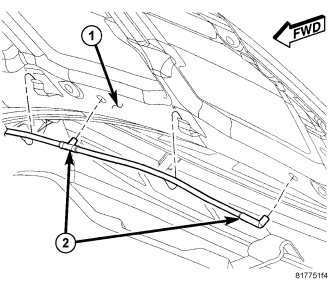

4. From the underside of the hood, reconnect the washer hose connector (2) to the barbed nipple of the nozzle.
5. Reinstall the rear edge of the hood silencer pad to the clips on the inner hood reinforcement (1).
REAR

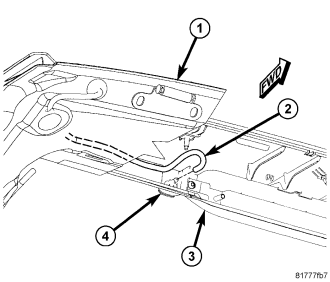

1. Position the rear washer nozzle (4) through the mounting hole from the face of the liftgate spoiler (3).
2. Using hand pressure, press the nozzle firmly and evenly into the mounting hole until the two integral latch features are fully engaged on the back of the spoiler.
3. From the back of the spoiler, reconnect the liftgate washer supply hose (2) to the barbed nipple of the nozzle.
4. Reinstall the spoiler onto the liftgate outer panel (1). (Refer to 23 - BODY/EXTERIOR/LIFTGATE SPOILER - INSTALLATION).
5. Reconnect the battery negative cable.
