ANTENNA CABLE - INSTRUMENT PANEL
REMOVAL
WARNING: Disable the airbag system before attempting any steering wheel, steering column, seat belt tensioner, side airbag, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions could result in accidental airbag deployment and possible personal injury.
DOMESTIC
1. Disconnect and isolate the battery negative cable.
2. Remove radio (Refer to 8 - ELECTRICAL/AUDIO/RADIO - REMOVAL).
CAUTION: Pulling the antenna cable straight out of the radio without pulling on the locking antenna connector could damage the cable or radio.

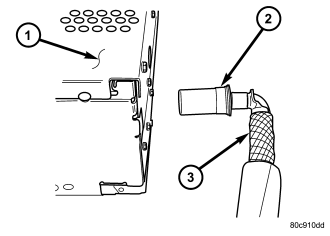

3. Disconnect the antenna cable by pulling the locking antenna connector (2) away from the radio (1).
4. Remove the glove box.
5. Remove instrument panel side panel.

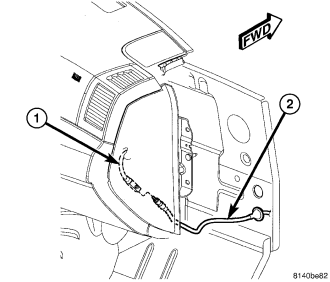

6. Disconnect instrument panel cable (1) from antenna body and cable (2).

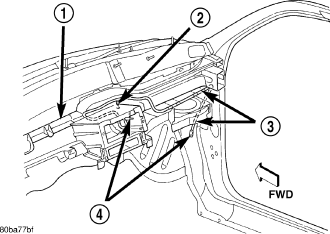

7. Remove the antenna retaining straps and remove antenna cable (4).
EXPORT
WARNING: Disable the airbag system before attempting any steering wheel, steering column, seat belt tensioner, side airbag, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions could result in accidental airbag deployment and possible personal injury.
1. Disconnect and isolate the battery negative cable.
2. Remove the instrument panel (Refer to 23 - BODY/INSTRUMENT PANEL/INSTRUMENT PANEL ASSEMBLY - REMOVAL).
CAUTION: Pulling the antenna cable straight out of the radio without pulling on the locking antenna connector could damage the cable or radio.
3. Disconnect the antenna cable by pulling the locking antenna connector (2) away from the radio (1).
4. Disengage each of the retainers that secure the cable (2) to the instrument panel and remove cable.
INSTALLATION
DOMESTIC

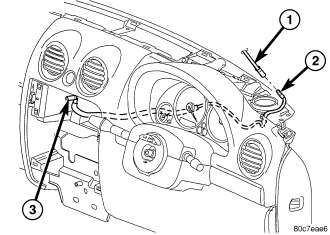

1. Install cable (3) to instrument panel and secure into place.
2. Connect instrument panel cable (1) to antenna body and cable (2).
3. Install instrument panel side panel.
4. Install glove box.
5. Connect instrument panel cable (3) to radio (1).
6. Install radio (Refer to 8 - ELECTRICAL/AUDIO/RADIO - INSTALLATION).
7. Connect battery negative cable.
EXPORT
1. Install instrument panel cable (2) to instrument panel and secure into place.
2. Connect instrument panel cable (3) to radio.
3. Install the instrument panel (Refer to 23 - BODY/INSTRUMENT PANEL/INSTRUMENT PANEL ASSEMBLY - INSTALLATION).
4. Connect the battery negative cable.
