ANTENNA CABLE - SATELLITE RADIO
REMOVAL
1. Disconnect and isolate the battery cable.
2. Remove D-pillar trim.
3. Remove headliner (Refer to 23 - BODY/INTERIOR/HEADLINER - REMOVAL).

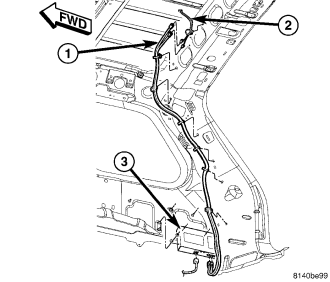

4. Disconnect antenna cable (1) from antenna (2).
5. Remove antenna cable retainers from D-pillar and roof panel.
6. Disconnect antenna cable from satellite receiver.
INSTALLATION
1. Connect antenna cable to satellite receiver.
2. Install antenna cable retainers to D-pillar and roof panel.
3. Connect antenna cable (1) to satellite antenna (2).
4. Install headliner (Refer to 23 - BODY/INTERIOR/HEADLINER - INSTALLATION).
5. Install D-pillar trim.
6. Connect battery negative cable.
