ANTENNA-SATELLITE
DESCRIPTION
The satellite radio antenna is secured by a threaded fastener and two retainers which protrude through a hole in the roof panel. Two wires from the antenna are connected to the satellite receiver module.
OPERATION
The satellite radio antenna receives signals from orbiting satellites and sends these signals to the satellite receiver module. The satellite radio antenna must have open space in which to operate. Items carried on the roof, parking inside etc. can have an effect on the antenna's ability to receive signals.
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Lower the rear portion of the headliner as necessary to access underside of antenna (Refer to 23 - BODY/INTERIOR/HEADLINER - REMOVAL).

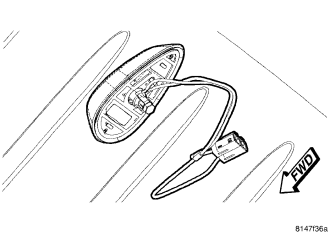

3. Disconnect the wire harness connectors from the antenna.

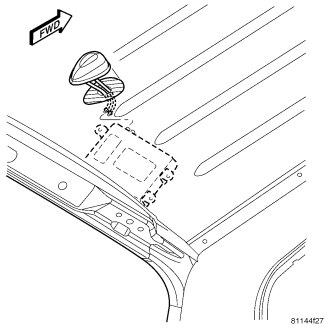

4. Remove fastener and retainer.
5. From inside the vehicle, and using a flat bladed tool, depress one of the retaining tabs on the antenna. Push up the one side of the antenna connector through the roof panel. Depress the other side of the connector and remove the antenna.
INSTALLATION
1. Insert wire harness through hole in roof panel. Press antenna into position until both retainers snap into place.
2. Connect wire harness connectors to antenna.
3. Install and tighten retaining fastener.
4. Install headliner (Refer to 23 - BODY/INTERIOR/HEADLINER - INSTALLATION).
5. Connect battery negative cable.
