ADJUSTABLE PEDAL SWITCH
DESCRIPTION

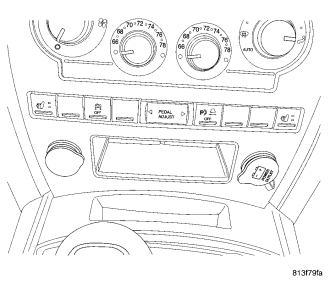

The adjustable pedals switch are mounted in the instrument panel. The switch is part of the lower instrument panel switch pod assembly. If the switch is damaged or inoperative the complete switch pod assembly must be replaced.
Pressing the switch will either move the pedals forward toward you or rearward away from you.
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the instrument panel center bezel, (Refer to 23 - BODY/INSTRUMENT PANEL/INSTRUMENT PANEL CENTER BEZEL - REMOVAL).
3. Remove the lower instrument panel switch pod fasteners.
4. Remove the lower instrument panel switch pod from the vehicle.
INSTALLATION
NOTE: There are different instrument panel switch pods available based on the option content of the vehicle. Ensure the switch pod being installed matches the vehicle options.
1. Position the lower instrument panel switch pod into the instrument panel center bezel.
2. Install the lower instrument panel switch pod fasteners.
3. Install the instrument panel center bezel, (Refer to 23 - BODY/INSTRUMENT PANEL/INSTRUMENT PANEL CENTER BEZEL - INSTALLATION).
4. Connect the battery negative cable.
5. Verify system operation.
