CHANNEL-GLASS
REMOVAL
1. Remove the watershield. (Refer to 23 - BODY/DOORS - REAR/WATERSHIELD - REMOVAL)

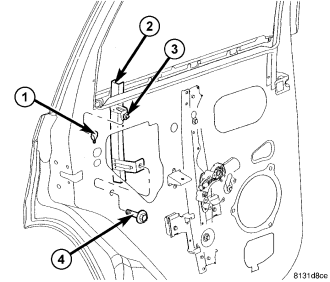

2. Remove the weatherstrip from the rear glass run channel (2).
3. Loosen the bolt (3) that secures the top of the rear glass run channel to the keyed hole on the inside door panel.
4. Remove the bolt (4) that secures the bottom of the run channel to the inside door panel.
5. Lift the rear glass run channel upward within the door far enough to disengage the bolt that secures the top of the run channel to the keyed hole on the inside door panel.
6. Remove the rear glass run channel from the door.
INSTALLATION
1. Position the rear glass run channel (2) onto the rear door.
2. Engage the bolt (3) into the keyed hole on the inside door panel.
3. Install the bolt (4) that secures the bottom of the rear glass run channel to the inside door panel. Tighten the bolt to 8.5 N·m (75 in. lbs.).
4. Tighten the bolt that secures the top of the rear glass run channel to the inside door panel to 8.5 N·m (75 in. lbs.).
5. Install the weatherstrip into the rear glass run channel.
6. Install the watershield. (Refer to 23 - BODY/DOORS - REAR/WATERSHIELD - INSTALLATION)
