MODULE-FUEL PUMP
REMOVAL
1. Drain and remove fuel tank. (Refer to 14 - FUEL SYSTEM/FUEL DELIVERY - STANDARD PROCEDURE)

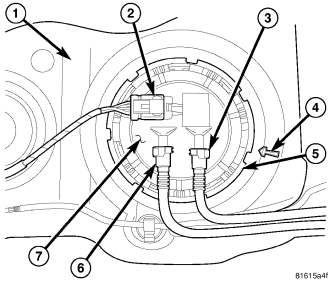

2. Note rotational position of pump module before attempting removal. An indexing arrow (4) is located on top of module for this purpose.
3. Disconnect pigtail harness connector (2) at pump module (7).
4. Disconnect fittings (3) and (6) from pump module (Refer to 14 - FUEL SYSTEM/FUEL DELIVERY/QUICK CONNECT FITTING - STANDARD PROCEDURE).

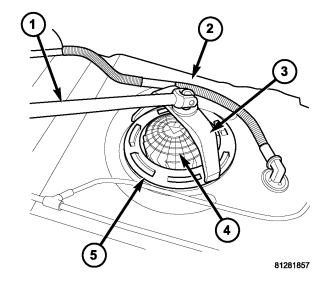

5. Position Lockring Remover/Installer 9340 (3) into notches on outside edge of lockring (5).
6. Install 1/2 inch drive breaker bar (1) to tool 9340 (3).
7. Rotate breaker bar counter-clockwise to remove lockring.
8. Remove lockring. The module will spring up slightly when lockring is removed.
9. Remove module from fuel tank. Be careful not to bend float arm while removing.
INSTALLATION
CAUTION: Whenever the fuel pump module is serviced, the rubber seal (gasket) must be replaced.
1. Using a new seal (gasket), position fuel pump module into opening in fuel tank.
2. Position lockring (5) over top of fuel pump module.
3. Rotate module until embossed alignment arrow points to center alignment mark. This step must be performed to prevent float from contacting side of fuel tank. Also be sure fuel fittings on top of pump module are pointed to right side of vehicle.
4. Install Lockring Remover/Installer 9340 (3) to lockring.
5. Install 1/2 inch drive breaker (1) into Lockring Remover/Installer 9340 (3).
6. Tighten lockring (clockwise) until all seven notches have engaged.
7. Connect pigtail harness connector (2) to pump module (7).
8. Connect fittings (3) and (6) to pump module. (Refer to 14 - FUEL SYSTEM/FUEL DELIVERY/QUICK CONNECT FITTING - STANDARD PROCEDURE)
9. Install fuel tank. (Refer to 14 - FUEL SYSTEM/FUEL DELIVERY/FUEL TANK - INSTALLATION)
