REMOVAL
RECEIVER
1. Disconnect and isolate the battery negative cable.
2. Remove the overhead console from the headliner. (Refer to 8 - ELECTRICAL/OVERHEAD CONSOLE - REMOVAL).

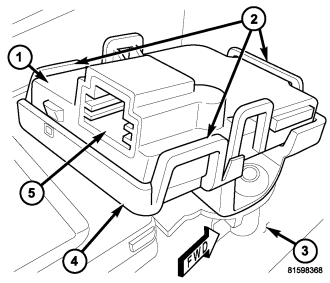

3. Locate the intrusion sensor receiver (1) in the mounting bracket (4) on the right front corner of the overhead console housing (3).
4. Disconnect the take out of the overhead wire harness from the connector receptacle (5) on the rearward end of the receiver housing.
5. Release the three latch features (2) of the mounting bracket and disengage the receiver from the bracket.
TRANSMITTER
1. Disconnect and isolate the battery negative cable.
2. Pull the bezel (1) straight down from the headliner (3) to unsnap it from the transducer housing (2) of the intrusion sensor transmitter. Be certain to take the appropriate precautions not to soil or damage the headliner.
3. Remove the trim from the upper liftgate opening. (Refer to 23 - BODY/INTERIOR/LIFTGATE OPENING UPPER TRIM - REMOVAL).
4. Remove the trim from the right upper D-pillar. (Refer to 23 - BODY/INTERIOR/D-PILLAR TRIM - REMOVAL).

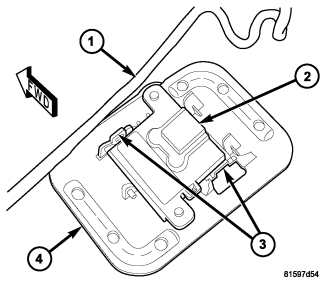

5. Carefully pull down the right rear edge of the headliner (1) from the upper liftgate opening far enough to reach between the headliner and the roof panel to access the transmitter (2) and mounting bracket (4) on the headliner substrate.
6. Disconnect the take out of the overhead wire harness (1) from the connector receptacle on the right side of the transmitter housing.
7. Release the two latch features (3) of the mounting bracket and disengage the transmitter from the locating pins of the bracket.
8. Remove the transmitter from between the headliner and the roof panel.
