INSTALLATION
NON-ADJUSTABLE PEDAL
1. Install the pedal assembly to the vehicle.
2. Tighten the upper brake pedal sled nuts.
3. Install the lower steering shaft to the column.
4. Install the lower steering shaft pinch bolt at the column.
5. Unlock the steering wheel.
6. Install the 2 intermediate shaft bearing nuts (1).
7. Install the power brake booster (Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/POWER BRAKE BOOSTER - INSTALLATION).

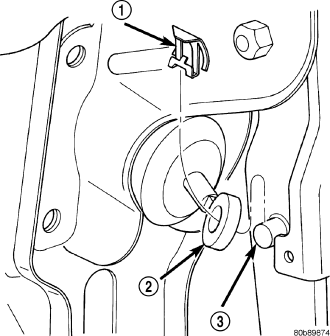

8. Install booster push rod (2) on pedal pin (3) and install retainer clip (1) on pedal pin.
9. Reconnect the negative battery cable.
10. Fill and bleed brake system.
11. Check and adjust stop lamp switch if necessary.
ADJUSTABLE PEDAL

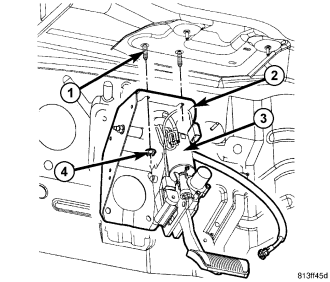

1. Install the pedal assembly (2) to the vehicle.
2. Tighten the upper brake pedal sled nuts (4).

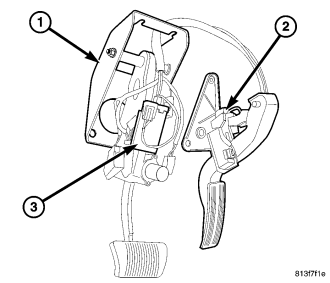

3. Install and tighten the 2 accelerator pedal (2) nuts to 28 N·m ( 21 ft. lbs.).
4. Reconnect the accelerator pedal cable.
5. Reconnect the pedal motor electrical connector.
6. Install the lower steering shaft to the column.
7. Install the lower steering shaft pinch bolt at the column.
8. Unlock the steering wheel.
9. Install the 2 intermediate shaft bearing nuts (1).
10. Install the power brake booster (Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/POWER BRAKE BOOSTER - INSTALLATION).
11. Reconnect the negative battery cable.
12. Fill and bleed brake system.
