MOTOR/MODULE-SUNROOF
REMOVAL
WARNING: Do not attempt to move or reposition the sunroof glass panel or drive cables with the motor/module removed. Vehicle/sunroof damage or personal injury may result.
WARNING: The sunroof must first be calibrated and the Motor/Module Initialization Procedure must be completed any time a sunroof motor/module is replaced with a new component. Failure to perform this procedure could result in vehicle damage and/or personal injury. (Refer to 8 - ELECTRICAL/POWER TOP/MOTOR - STANDARD PROCEDURE - MOTOR/MODULE INITIALIZATION) for the appropriate procedure.
1. Disconnect the battery negative cable.
2. Remove the vehicle headliner, (Refer to 23 - BODY/INTERIOR/HEADLINER - REMOVAL).

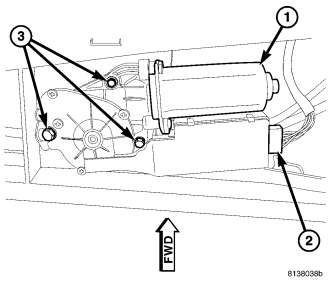

3. Remove the power sunroof motor/module electrical connector (2).
4. Remove the retaining screws (3) and remove the motor/module (1) from the vehicle.
INSTALLATION
WARNING: Do not attempt to move or reposition the sunroof glass panel or drive cables with the motor/module removed. Vehicle/sunroof damage or personal injury may result.
WARNING: The sunroof must first be calibrated and the Motor/Module Initialization Procedure must be completed any time a sunroof motor/module is replaced with a new component. Failure to perform this procedure could result in vehicle damage and/or personal injury. (Refer to 8 - ELECTRICAL/POWER TOP/MOTOR - STANDARD PROCEDURE - MOTOR/MODULE INITIALIZATION) for the appropriate procedure.
1. Position the power sunroof motor/module (1) in the vehicle.
2. Install the motor/module retaining screws (3). Tighten the screws to 4 N·m (35 in. lbs.).
3. Connect the motor/module electrical connector (2).
4. Partially install the vehicle headliner and connect all remaining sunroof electrical connectors, (Refer to 23 - BODY/INTERIOR/HEADLINER - INSTALLATION).
5. Connect the battery negative cable.
6. Perform the sunroof position calibration, (Refer to 8 - ELECTRICAL/POWER TOP/MOTOR - STANDARD PROCEDURE - SUNROOF POSITION CALIBRATION).
7. Perform the Motor/Module Initialization Procedure, (Refer to 8 - ELECTRICAL/POWER TOP/MOTOR - STANDARD PROCEDURE - MOTOR/MODULE INITIALIZATION).
8. Complete the vehicle headliner installation, (Refer to 23 - BODY/INTERIOR/HEADLINER - INSTALLATION).
9. Verify proper operation of the power sunroof system.
