PULLEY
REMOVAL
CAUTION: Do not reuse the old power steering pump pulley it is not intended for reuse. A new pulley must be installed if removed.
1. Remove the power steering pump assembly, (Refer to 19 - STEERING/PUMP - REMOVAL).

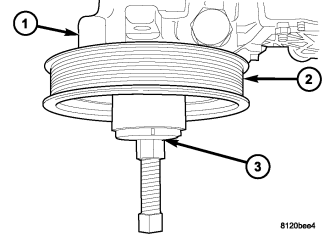

2. Remove the pulley (2) from the pump (1) using (OTC® 7185) power steering pulley removal tool (3) or equivalent.
